Product details

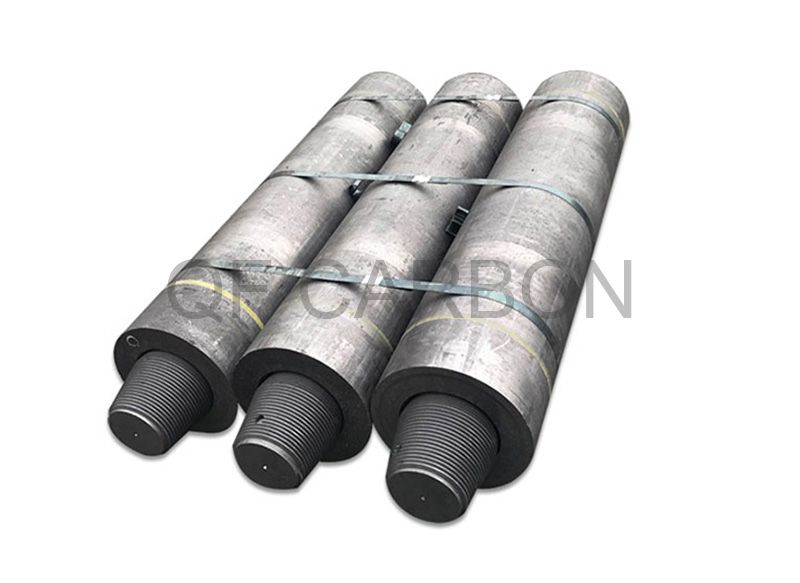

Graphite electrodes are used mainly in ladle furnaces, electric-arc furnace steel making, Yellow phosphorus furnace, Industrial silicon furnace or melting copper.
Product parameters
1. Quick Details
Place of Origin: Hebei, China (Mainland)
Brand Name: QF
Type: Electrode Block
Application: Steel Making/Smelting Steel
Length: 1600~2800mm
Grade: HP
Resistance (μΩ.m): <6.2
Apparent Density (g/cm³): >1.67
Thermal Expansion(100-600℃) x 10-6/℃: <2.0
Flexural Strength (Mpa): >10.5
ASH: 0.3% max

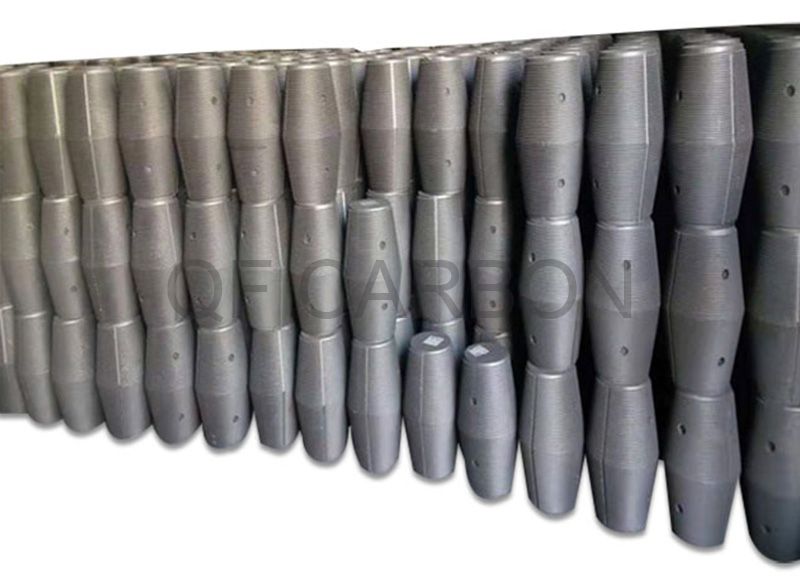

Nipple type: 3TPI/4TPI/4TPIL
Raw Material: Needle Petroleum Coke
Superiority: Low Consumption Rate
Color: Black Gray
Diameter: 300mm, 400mm, 450mm, 500mm, 600mm, 650mm, 700mm
2. Supply Ability
3000 Tons per Month

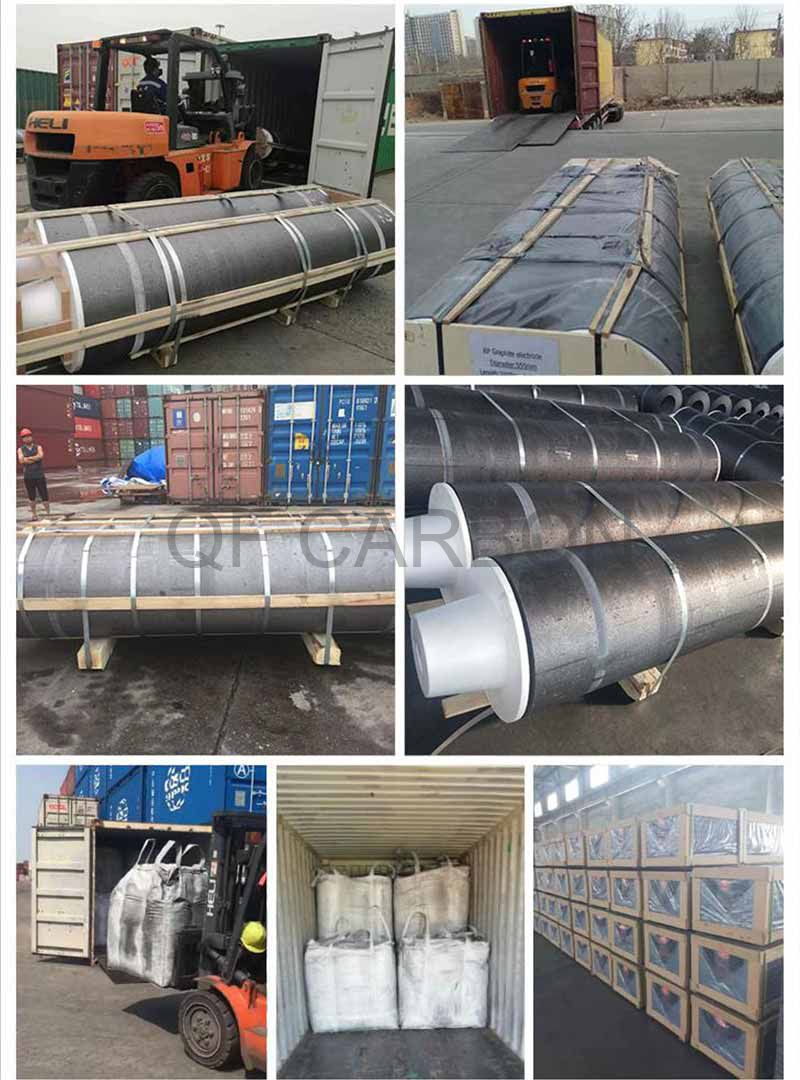

3. Packing and delivery
Packaging Details:
Standard wooden pallets or according to customer's requirement.
Port:
Tianjin Port
Lead Time:
| Quantity(Tons) | 1-20 | >20 |
| Est. Time(days) | 15 | To be negotiated |
4. Product Application
Graphite electrodes are used mainly in ladle furnaces, electric-arc furnace steel making, Yellow phosphorus furnace, Industrial silicon furnace or melting copper. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in this demanding environment. High Quality Needle Coke in HP&UHP graphite electrode, ensure the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.
5. Technical characteristics
| Item | Electrode | ATE Nipple |
| Specific Electrical Resistance | <8.5 | <6.5 |
| Flexure strength (Mpa) | >8.5 | >15 |
| Elastic Modulus(Gpa) | <9.3 | <14 |
| Bulk Density(g/cm3) | >1.54 | >1.69 |
| CTE (100-600℃) x 10-6/℃ | <2.9 | <2.8 |
| Ash Content(%) | <0.5 | <0.5 |
| Allowable Diameter(mm) | Allowable Length(mm) | ||||
| Nominal Diameter | Max | Min | Nominal Length | Max | Min |
| 200 | 207 | 202 | 1600/1800/2000/2200/2400/2700 | +100 | -100 |
| 250 | 257 | 252 | |||
| 300 | 307 | 302 | |||
| 350 | 357 | 352 | |||
| 400 | 409 | 403 | |||
| 450 | 460 | 454 | |||
| 500 | 511 | 505 | |||
| 550 | 562 | 556 | |||
| 600 | 613 | 607 | |||
| 700 | 714 | 708 | |||

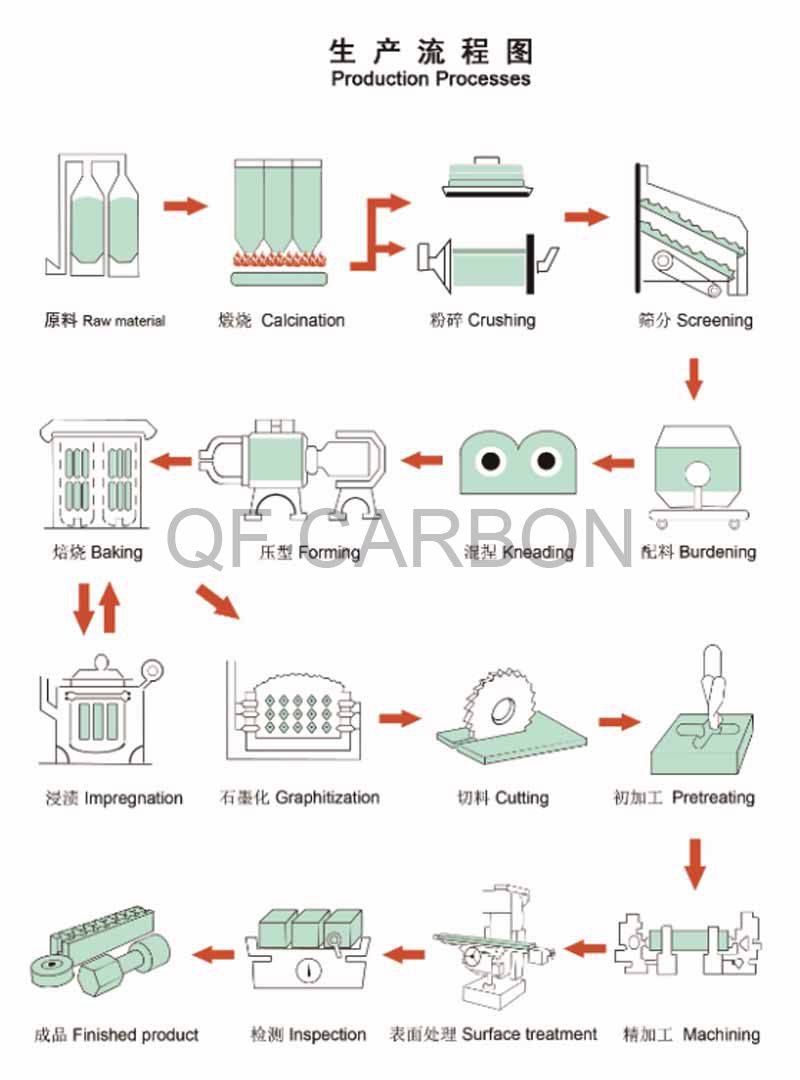

6. Production Processes
The graphite electrode is mainly made of calcine petroleum coke and needle coke, and the coal bitumen is used as a binder. It is made by calcination, compounding, kneading, forming, baking, graphitization and machining.
7. Company Profile
Handan Qifeng Carbon Co., LTD. is a large carbon manufacturer in China, with more than 30 years production experiences, has the first-class carbon production equipment, reliable technology, strict management and perfect inspection system. Our factory can provide carbon materials and products in many areas. We mainly produce and supply graphite electrode with UHP/HP/RP grade,Our product has been exported to more than 10 foreign countries and areas (KZ, Iran ,India, Russia, Belgium, Ukraine) and got high reputation from our customers all over the world.
We adhere to the business principles of "quality is life". With first-class product quality and perfect after-sales service, we are willing to create a better future with friends together. Welcome friends from home and abroad to visit us
